OpenCV更改图片颜色

原图效果:
在这里插入图片描述

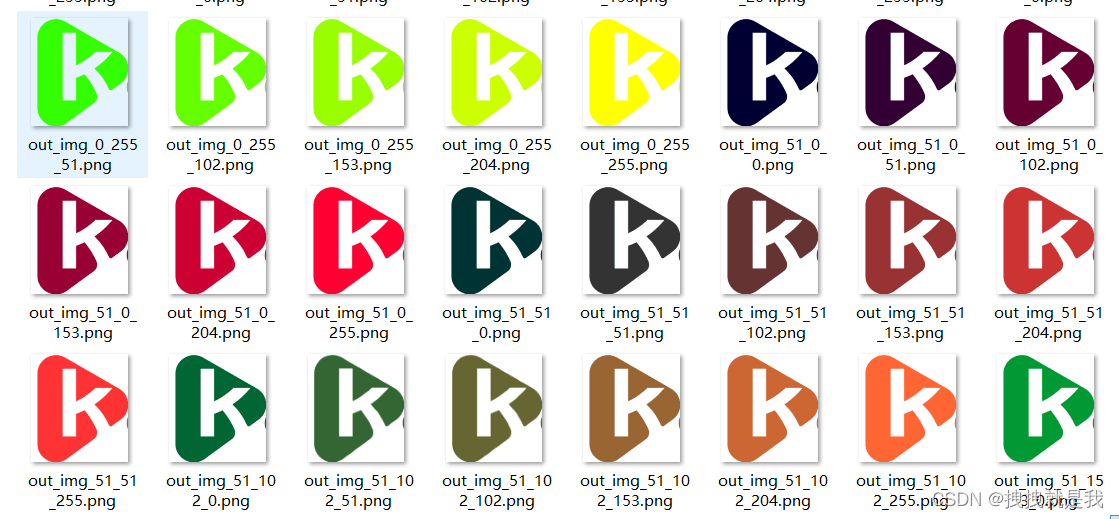

更改颜色后效果:
在这里插入图片描述
直接上源码:


#include
#include
#include
#include
#include

using namespace cv;
using namespace std;

int main(int argc, char const* argv[])
{
    Mat srcImg = imread("E:/img/kai.png", IMREAD_UNCHANGED); //-1不做任何改变
    Mat srcImg1 = imread("E:/img/kai.png", 0);   //0灰度
    Mat srcImg2 = imread("E:/img/kai.png", 1);  //1是color

    cout  srcImg.channels()  endl;
    cout  srcImg1.channels()  endl;
    cout  srcImg2.channels()  endl;

    imshow("-1", srcImg);
    imshow("0", srcImg1);
    imshow("1", srcImg2);

    //颜色有空间 RGB (1) RGBA(-1) 透明度  灰色空间(0)
    //1、存储阶段的颜色值
    vectorVec3d> colors;
    unsigned long index = 0;
    for (int i = 0; i  6; ++i) {
        for (int j = 0; j  6; ++j) {
            for (int k = 0; k  6; ++k) {
                colors.push_back(Vec3d());
                colors[index][0] = i / 5.0 * 255;
                colors[index][1] = j / 5.0 * 255;
                colors[index][2] = k / 5.0 * 255;
                index++;
            }
        }
    }
    //2、更对对应的颜色值
    index = 0;
    Mat temp = srcImg.clone();
    while (index  colors.size()) {
        for (int r = 0; r  srcImg.rows; ++r) {
            for (int c = 0; c  srcImg.cols; ++c) {
                //获取像素点的颜色
                //c4b &pixel = srcImg.at(r, c);  //4b和4d有区别的,b是uchar, d是double
                Vec4b &pixel_temp = temp.atVec4b>(r, c);
                //如果当前点的透明度为0
                if (pixel_temp[3] == 0) {
                    continue;
                } else {
                    for (int i = 0; i  3; ++i) {
                        pixel_temp[i] = colors[index][i];
                    }
                }
            }
        }
        //3、保存需要的图片
        char outImagePath[64] = {};
        sprintf_s(outImagePath, "E:/img/outImagePath/out_img_%.0f_%.0f_%.0f.png", colors[index][0], colors[index][1], colors[index][2]);
        imwrite(outImagePath, temp);
        index++;
    }
    //waitKey(0);
    return 0;
}
